| Weight | 0,56 kg |
|---|---|
| Dimensions | 289 × 233 × 150 mm |
| Operation system | Android |
| CPU | Quad Core |
| Field of View | 105° |
| Maximum microSD card size | 256 GB |
| Laser point | Support |
| Running hour | Stand-by time more than 48H，continuous working more than 8H |
| IP Rate | IP65 without any damage of 2 meters high drop |
| Battery | LiPo 4200mAh |
| Image | 16 MP JPEG format |
| 4G upload | Back office Supervision and inspections（Real time data uploading), Request uploading function（Connect with back office and Real time data uploading) |
| Video resolution | up to 1920 x 1080 pixels (FHD) |
| Video frame rate | up to 30 fps |
| Video encoding Bitrate | up to 8000 kb/s |
| Video encoding algorithm | H264, H265 |
| Connection type | 4G, 3G, WIFI, Bluetooth 4.0 |
| Wifi range | 2.4 GHz |
| GPS | Yes |
| Wireless intercom | Real time 4G network wireless intercom, group meeting |
| Led Light Distance | Maximum 20m |
| Working temperature | -30°C – +70°C |

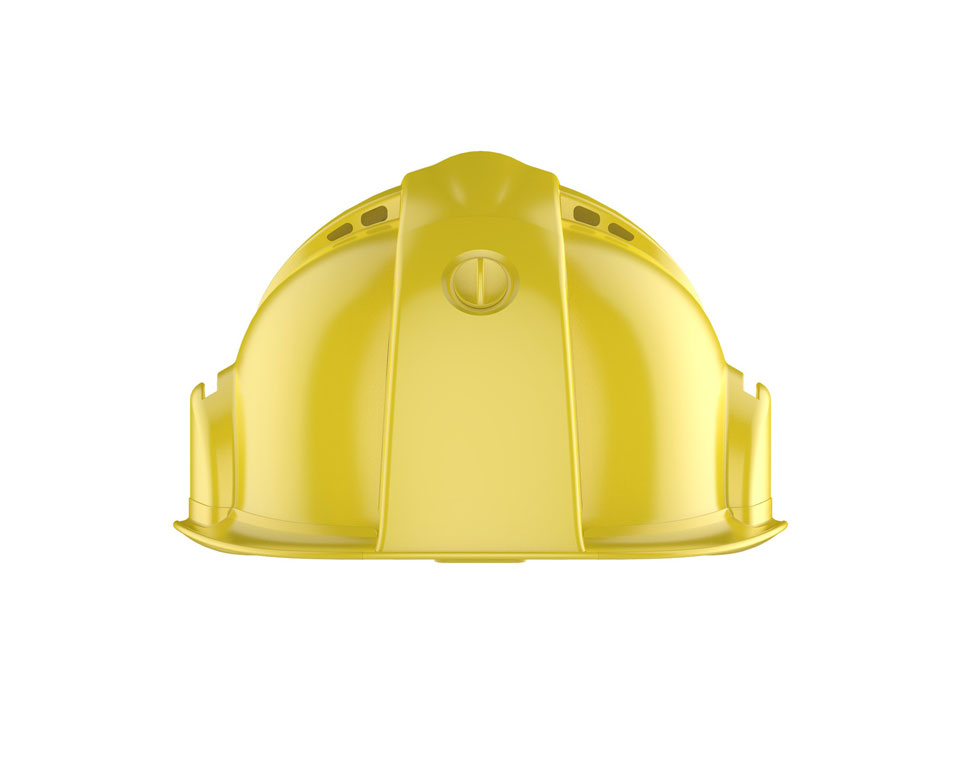

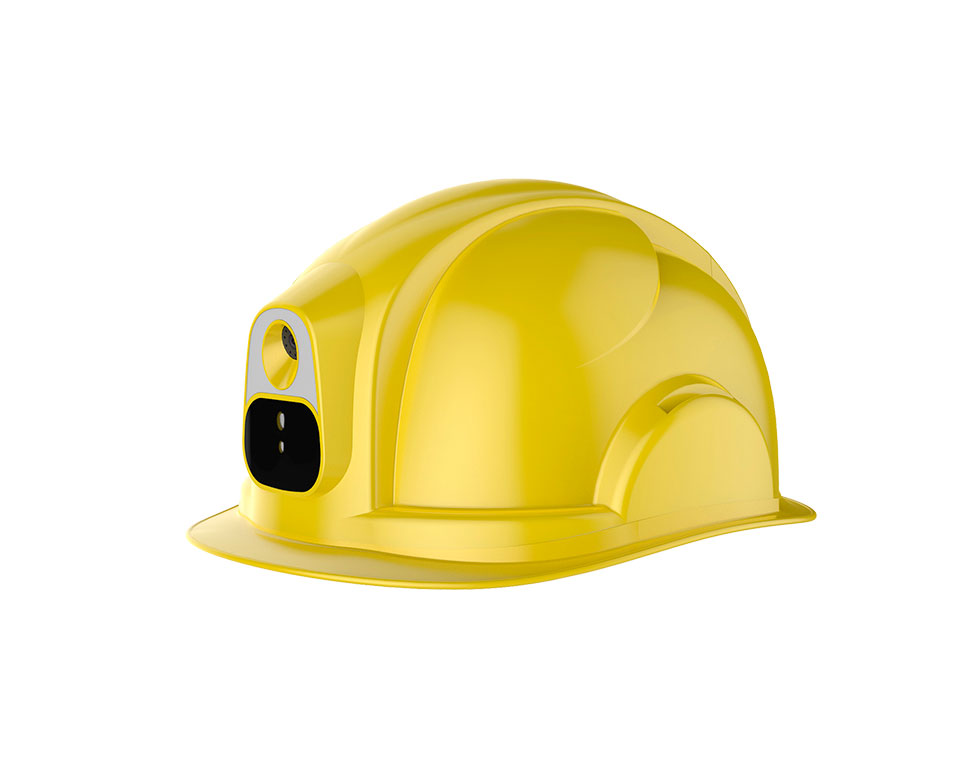

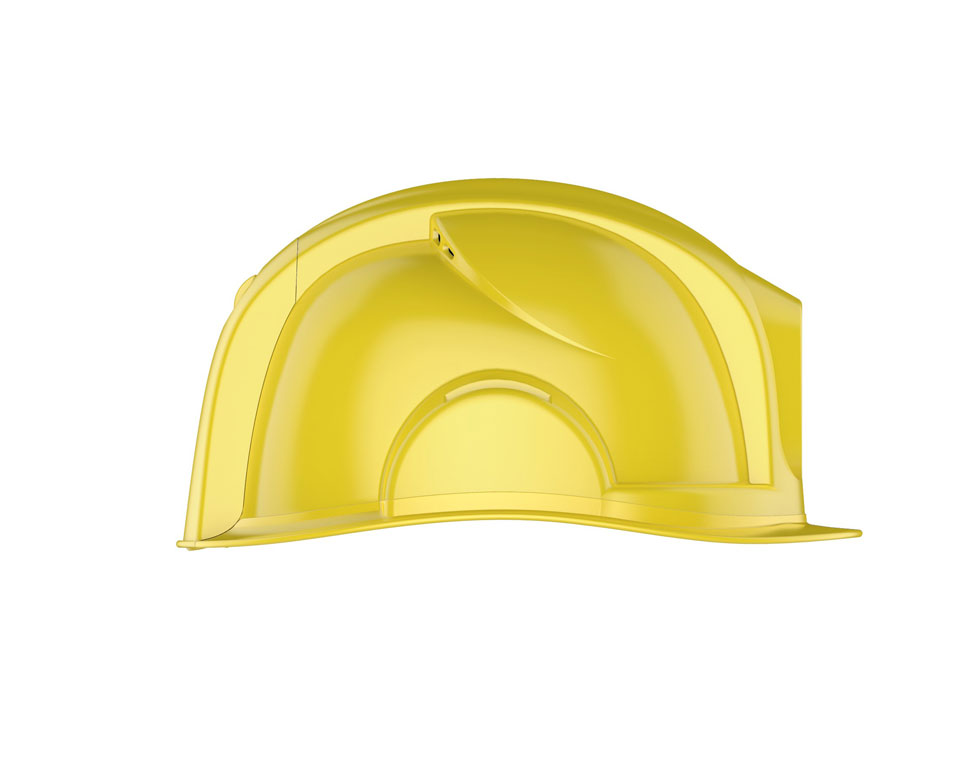

4G SMART HELMET
This helmet is an intelligent mobile operation terminal that can be worn on the head, which utilizes functions such as 4G/wifi internet, perception sensors, real-time video, photography, recording, real-time intercom, positioning, electronic fence, security protection warning, etc. By interacting with the intelligent platform for on-site operations, remote scheduling and expert guidance can be achieved.
Main Functions
- Two way communication
- Real time GPS/ track query
- 1W Led light
- Meet GB/T 2811-2019 country standard
- 4500mAh Battery, continuous working for 8 hours
- 4G/3G/WIFI/BT
- Open API
- Android phone app/ PC software
