| Weight | 0,95 kg |
|---|---|

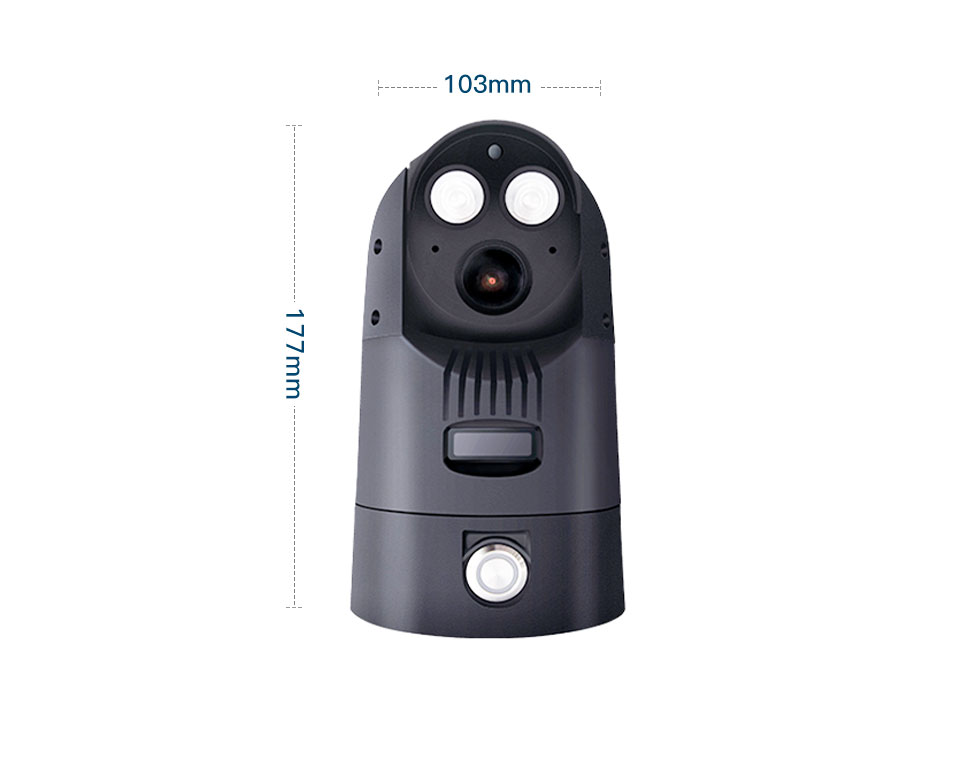

| Dimensions | 103 × 103 × 177 mm |
| Sensor | 1/2.8″ F23 CMOS |
| Optical zoom | 4x |
| Sensitivity | 0.01 Lux |
| Operation system | Android |
| CPU | Eight Core |
| RAM | 2GB |
| Internal memory | 16GB |
| Display | 1" |
| IR CUT | Auto |
| Focal length | 4.5~94.0mm |
| Video resolution | up to 1920 x 1080 pixels (FHD) |
| Horizontal rotation angle | 350°，speed 0.05°～100°/s |
| Video frame rate | up to 30 fps |
| Video encoding algorithm | H264, H265 |
| Video encoding Bitrate | up to 6000 kb/s |
| Vertical rotation angle | -20°～+90°，speed 0.05°～100°/s |
| Sim | Dual sim |
| Connection type | 4G, 3G, 2G, WIFI, Bluetooth 4.0, USB |
| Audio encoding algorithm | AAC, G711 |
| Wifi range | 2.4 GHz |
| Audio channels | Mono |
| Audio encoding Bitrate | up to 192 kb/s |
| Audio sampling rate | 32 kHz |
| GPS | BeiDou, Galileo, Glonass |
| Battery | 3000mAh 12V |
| Proof level | IP66 |
| Working temperature | -30°C – +70°C |
4G MINI PORTABLE PTZ DOME SBP40
SBP40 is a super mini control ball, which has a volume reduction of about 80% compared to similar products in the market. It can be held in a single hand, with a weight reduction of about 40%. The base diameter is 105mm, the height is 180mm, and the body is only 0.75kg, making it more convenient to carry and install. It is equipped with a high-performance 360 ° pan tilt, supports 4x optical zoom, eight core processors, greatly improving the intelligence level of the device and enriching application scenarios.
Main Functions
- 4x optical zoom
- Ultra small body design, 950g ultra light weight
- Support for IR-CUT infrared conversion
- GPS dual mode positioning function
- The body is equipped with an OLED screen for real-time display of working status
- Supports two way communications
